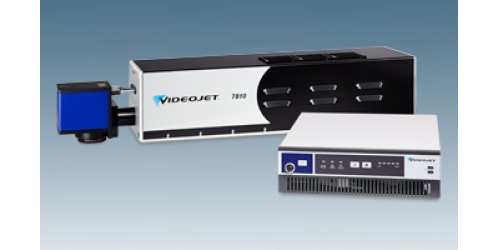

2-watt ultraviolet light wavelength
High-contrast identification marks with HDPE/LDPE and DuPontTM Tyvek® packaging properties
The marking speed can reach 250 products per minute, and there is no distortion of the code on the rotating equipment.
| Value | |
| Laser Source | Pulsed Nd:YVO4 (Vanadate) Diode Pumped Laser |
| Maximum Power | 2 Watts |
| Laser Cooling | Air Cooling |
| Maximum Marking Speed | 500 Characters Per Second |
| Maximum Line Speed | 300 m/min (984 ft/min) |
| Environmental Rating | Marking Unit: IP20 / Power Unit: IP21 |
| Beam Output | Controllable Beam |
| Expected Laser Service Life | 14,000 – 20,000 Hours |
| Laser Wavelength | 355 nm |
| Focal Length Options | SS10 and SS7 with Focus Optics (f = 103 mm / 160 mm / 214 mm / 511 mm) |
| Maximum Marking Field | From 64 x 76 mm2 (SS10, f = 103 mm) up to 375 x 375 mm2 (SS10/SS7, f = 511 mm) |
| Standard I/O Connection | Ethernet |
| Standard User Interface | Smart Graph (Installed on optional external Windows 7 PC) |
| Optional User Interface | |
| Factory Air Required | No |
| Certifications | CE, CB, TÜV/NRTL |
It has the advantage of normal operating time, which can increase productivity and reduce costs:
During daily operations, no consumables need to be replaced, which can extend the running time of the production line.
The highest coding machine with air-cooled laser source can fully eliminate unplanned downtime.
No daily mechanical maintenance procedures are required, which helps to increase normal operating time.
Designed specifically to provide high performance and high quality:
Achieve high output in both rotational and linear applications, with a speed of up to 250 products per minute.
The ultraviolet wavelength laser beam can achieve high-speed mobile marking for HDPE/LDPE packaging to improve efficiency.
Mark at a speed of up to 5.0 meters per second with high-quality visual readable two-dimensional codes.
The 360° Arc compensation software function can achieve consistent high-quality marking on rotating equipment, completely eliminating deformation.
Realize top visual readability with repeatable high-contrast color changes on white HDPE/LDPE.
Based on flexibility and simple applicability:
The SmartGraph software helps to simplify the setting of arc compensation parameters*.
Because any code can be marked in any direction, at any position, on any product, it simplifies the coding process.
The ultraviolet wavelength laser beam can mark high-resolution, high-contrast codes on HDPE/LDPE without any additives or revalidation of packaging materials.
This is a special application request option.
Tyvek is a registered trademark of E.I. du Pont de Nemours and Company.
