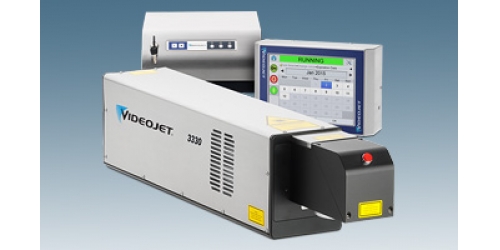

WediJet 3330 CO2 Laser Marking Machine

  • WediJet 3330 CO2 Laser Marking Machine

30W CO2 laser marking machine is equipped with CLARiTY touch screen controller

Provide high-quality labels on the production line with extremely minimal restrictions on fonts, codes or graphics.

The software that is a good choice has the capability to extend the identification speed to as high as 150 products per hour.

The code quality assurance function can significantly reduce potential code errors.


Specifications
Value
Laser TubeCO2
Maximum Power30 Watts
Laser CoolingAir Cooling
Maximum Marking Speed1300 Characters Per Second
Maximum Line Speed900 m/min (2,950 ft/min)
Environmental RatingIP32, IP54, IP65
Beam OutputControllable Beam
Expected Laser Source Service Life45,000 Hours
Laser Wavelength Options10.6 micron, 10.2 micron, 9.3 micron
Focal Length Options64 mm (2.50 in) – 400 mm (15.75 in)
Maximum Marking Window485 x 351 mm (19.09 x 13.81 in)
Standard I/O ConnectionInternal Terminal Connection
Standard User InterfaceHandheld Controller
Optional User InterfacePC, CLARiTY Laser Controller
UmbilicalRemovable, 3 Length Options
Factory Air Supply RequiredNo
Certifications & ApprovalsCE, TUV/NRTL, FCC
Compliance Without Certification: ROHS, CDRH/FDA


Uptime advantages boost productivity and reduce costs:

  • The laser tube features high gas flow and optimized air cooling to achieve a service life of more than 45,000 hours
  • Optional IP65 rating enables operation in harsh production environments with no factory air required
  • The CLARiTY laser controller eliminates operator errors to guarantee accurate coding on products; advanced OEE tools identify root causes of downtime to support continuous process improvement.

Engineered for high performance and superior print quality:

  • The highly focused laser beam delivers better marking contrast without increasing power
  • Three laser wavelengths, three marking heads and thirteen lenses ensure optimal coding results on different substrates
  • Optimized control software automatically calculates the most efficient marking path for higher throughput
  • Dot mode prints alphanumeric codes 33% faster than vector mode, with a maximum throughput of up to 150,000 products per hour (results vary by material)
  • Marking speed can reach 100,000 products per hour (throughput subject to material conditions)

Built for flexibility and ease of use:

  • Multiple marking window options extend product standoff distance to boost throughput for discrete goods, or mark multiple data on wide web applications with just one laser unit
  • Thirty-two standard beam delivery configurations allow easy integration into packaging and filling machines for stable coding quality and maximum uptime
  • The focus finder enables quick and precise focal point setup, while the removable umbilical cable simplifies equipment integration and production line changeover

It has a superior uptime advantage, which can enhance productivity and reduce costs:

The laser tube is designed with a large gas flow and has optimized air cooling, with a service life exceeding 45,000 hours.

The optional IP65 makes the coding machine suitable for harsh environments, eliminating the need for a factory air source.

The CLARiTY laser coding machine controller can reduce operator errors and help ensure correct coding on products; and advanced efficiency tools help identify the root cause of downtime events, thereby continuously improving the process.

Designed specifically to provide high performance and quality:

The highly focused laser beam achieves better performance without requiring higher power (label contrast)

It offers 3 laser wavelengths, 3 coding ports, and 13 lenses, enabling optimal coding quality on specific materials

The optimized control software can automatically calculate the most effective coding method, achieving faster coding speed

The dot pattern can print alphanumeric codes at 33% faster speed than the vector pattern, with a maximum printing speed of 150,000 products per hour (output depends on the material)

The maximum printing speed can reach 100,000 products per hour (output depends on the material)

Based on flexibility and ease of use:

A large number of coding window options can maximize product contact time, thereby increasing the output of discrete products, or only one laser coding machine can be used to code multiple pieces of information in wide-format rotary applications

It provides 32 standard beam transmission options, allowing the laser to be easily integrated into packaging or filling equipment, achieving the best coding quality and the longest system uptime

The focus finder tool facilitates quick setting of an accurate focal point, and the detachable throat tube facilitates integration and production line conversion
