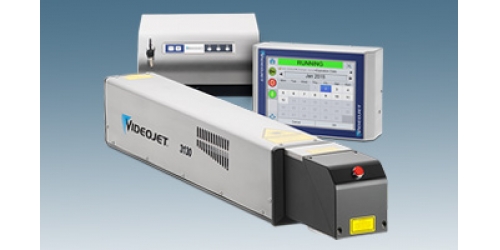

The 10W carbon dioxide laser marking machine is equipped with a CLARiTY touch screen controller.
High-performance and high-quality labels are suitable for applications in medium-speed production lines.
The production line setup wizard helps with rapid product line transitions, significantly enhancing the uptime.
The code quality assurance function can significantly reduce potential code errors.
| Value | |
| Laser Tube | CO2 |
| Maximum Power | 10 Watts |
| Laser Cooling | Air Cooling |
| Maximum Marking Speed | 1200 Characters Per Second |
| Maximum Line Speed | 600 m/min (1,968 ft/min) |
| Environmental Rating | IP32, IP54, IP65 |
| Beam Output | Controllable Beam |
| Expected Laser Source Service Life | 45,000 Hours |
| Laser Wavelength Options | 10.6 micron, 9.3 micron |
| Focal Length Options | 64 mm (2.50 in) – 400 mm (15.75 in) |
| Maximum Marking Window | 485 x 351 mm (19.09 x 13.81 in) |
| Standard I/O Connection | Internal Terminal Connection |
| Standard User Interface | Handheld Controller |
| Optional User Interface | PC, CLARiTY Laser Controller |
| Umbilical | Removable, 3 Length Options |
| Factory Air Supply Required | No |
| Certifications & Approvals | CE, TUV/NRTL, FCC Compliance Without Certification: ROHS, CDRH/FDA |
A versatile marking solution delivers high performance:
Uptime advantages boost productivity and reduce costs:
Carefully engineered to meet your marking and integration requirements:
The multi-functional coding solution offers high performance
A large number of marking window options help to increase the printing speed and efficiency
The product contact distance is larger, enabling the marking of more discrete products, thereby increasing production output
One laser coding machine can be used (instead of two laser coding machines) to achieve wide-format rotary applications, reducing capital investment (depending on the application)
The optimized control software can automatically calculate the most effective marking method, achieving faster marking speed
The dot pattern mode can print alphanumeric codes at 33% faster speed than the vector mode
It has the advantage of normal operating time, which can increase productivity and reduce costs:
The laser tube is designed with a larger gas flow, and the system has been optimized for air cooling, with a lifespan exceeding 45,000 hours
The optional IP65 makes the coding machine suitable for harsh environments, without the need for a factory air source
The CLARiTY laser coding machine controller can reduce operator errors, helping to ensure correct coding on the product; and advanced efficiency tools help to identify the root cause of downtime events, thereby continuously improving the process
Carefully designed, it can fully meet your actual coding needs and integration requirements:
It provides 2 laser wavelengths, 3 coding ports and 13 lenses, enabling the best coding quality on specific materials
It provides 32 standard beam transmission options, allowing the laser coding machine to be easily integrated into packaging or filling equipment, achieving the longest system normal operating time
It designs multiple communication options to integrate the laser system into various different control systems
It provides 3 detachable throat tubes for easy integration and production line conversion; it also provides a focusing tool to facilitate quick setting of the accurate focus
